Nano Prober System
▍Figure Hitachi N-6800 image
- • Support up to 7nm process transistor electrical measurement (N6000 can only support up to 40nm)
- • Simultaneous measurement of 6 needles at the same time (detailed specifications are listed in the table on the next page)
- • Support low temperature measurement, – 40 °C

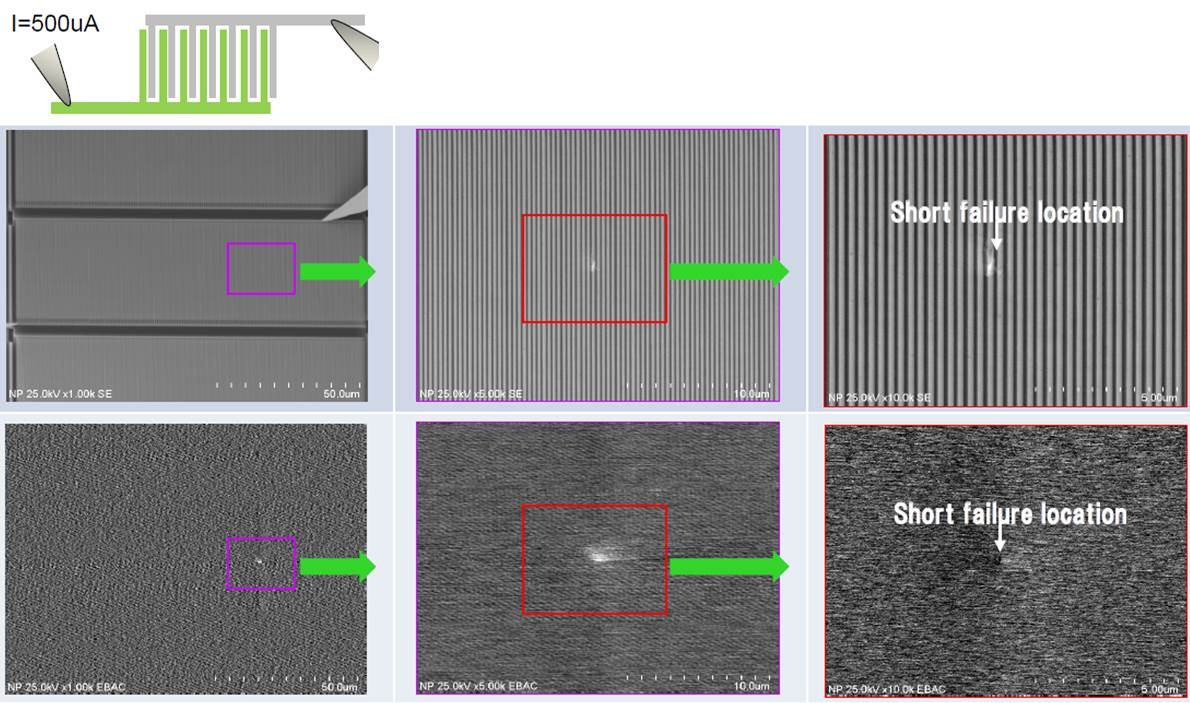

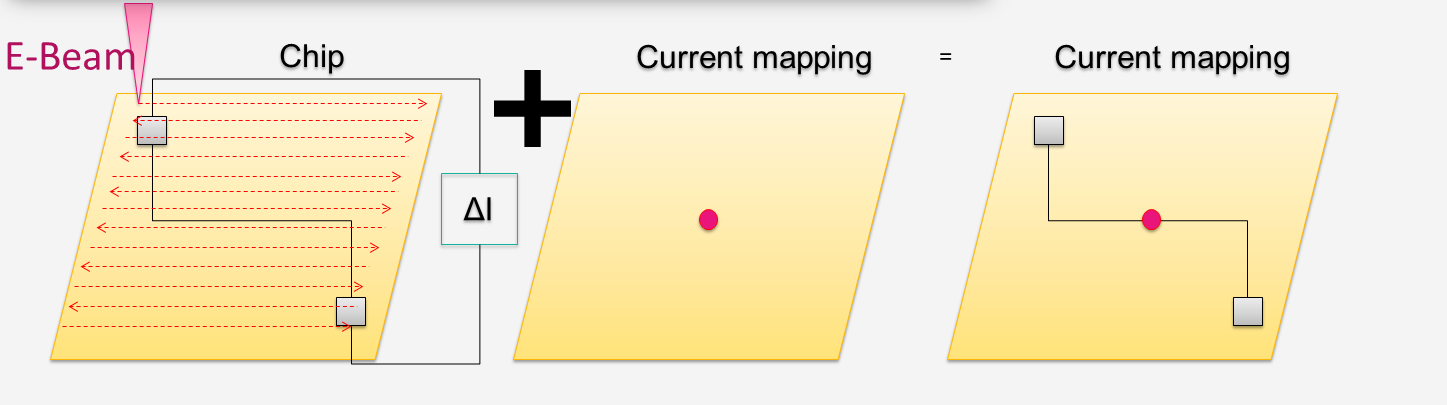

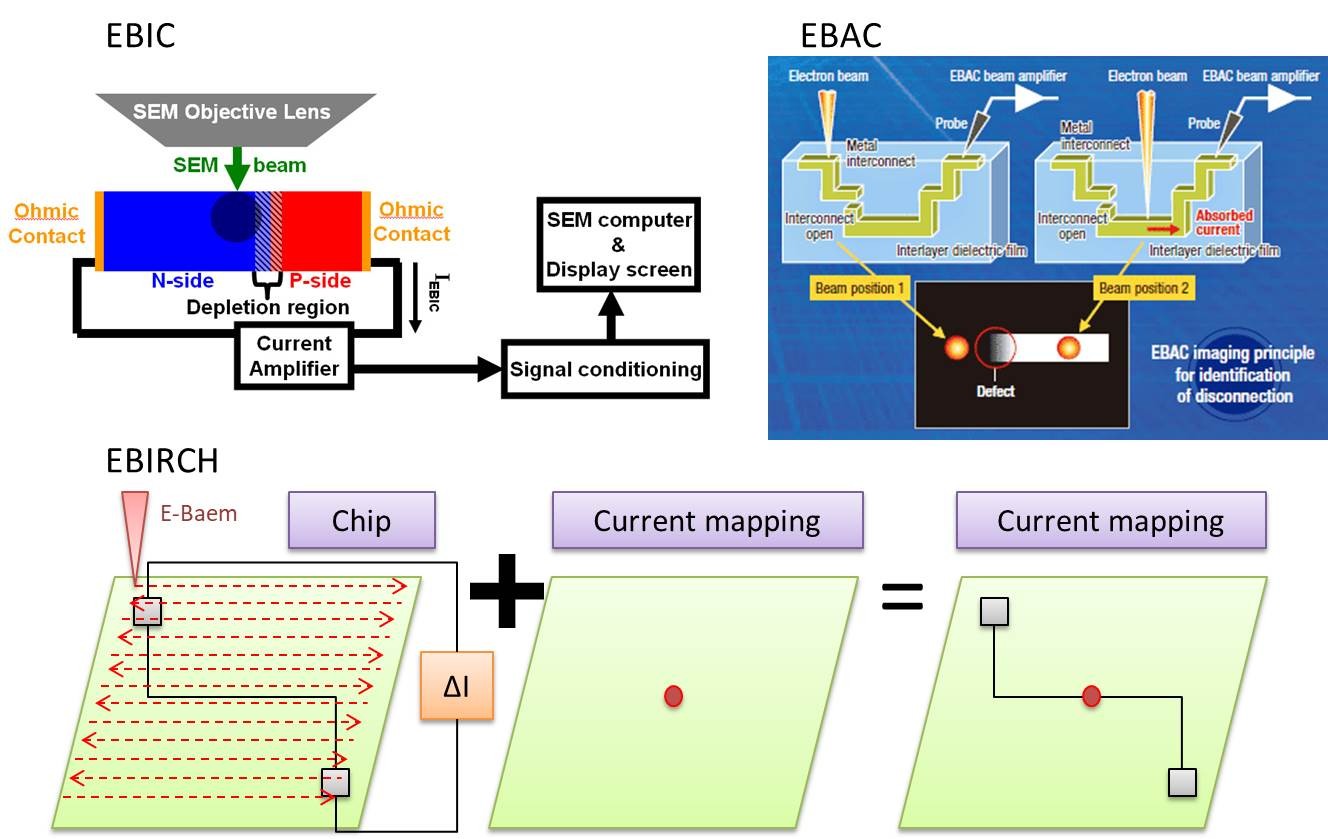

- • With current amplifier can have EBIC, EBAC, and EBIRCH functions
▍Spec.
▍Figure N-6000 with Agilent B1500A
.png)

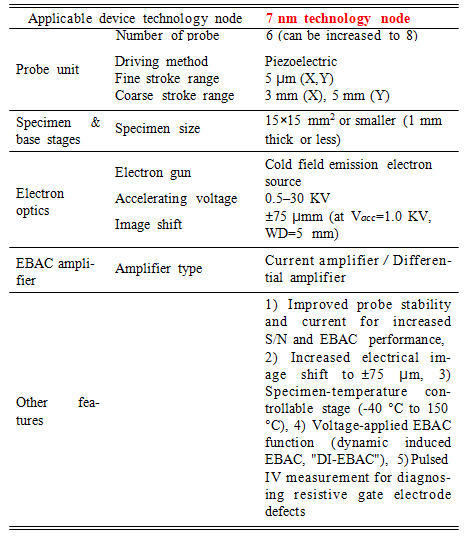

▍Spec.
▍Eng. Contact Window
Mr. Lee ext#6858
E-mail: pfa@msscorps.com
